Chains for conveyors with submersible scrapers KPS
Scraper pulling body KPS(Z)-200, 2KPS(Z)-200, KPS(Z)-320, 2KPS(Z)-320, KPS(Z)-400, 2KPS(Z)-400, KPS(Z)-500, 2KPS(Z)-500.
Production company «CEPRUS» offers to supply traction bodies for conveyors with immersed scrapers of the following types:
- Submerged scraper conveyors 2KPS(Z)
- Submerged scraper conveyors KPS(Z)
- Submerged scraper conveyors KPS(2M) and KPS(2M)-T
- Submerged scraper conveyors KPS (D)

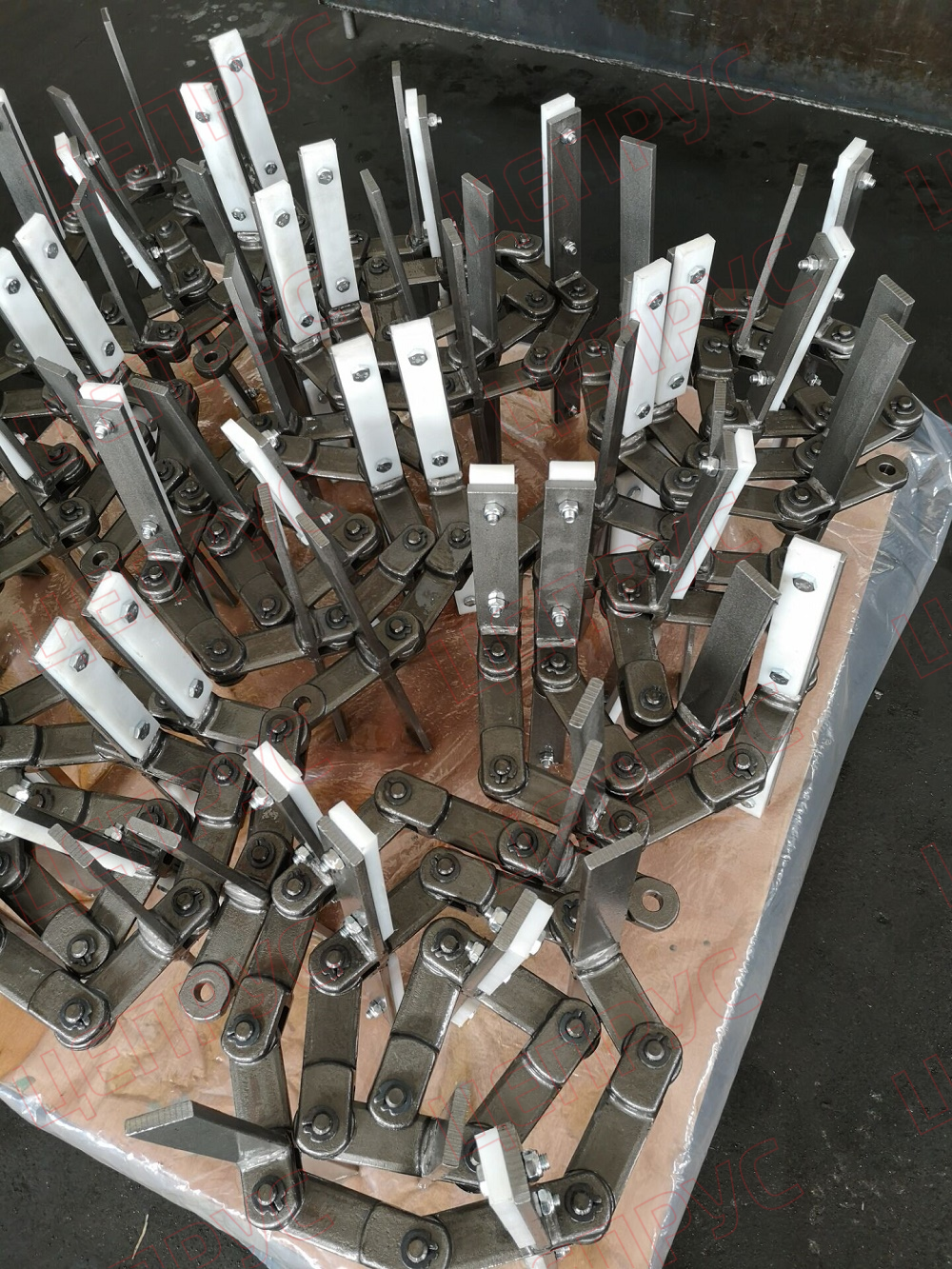

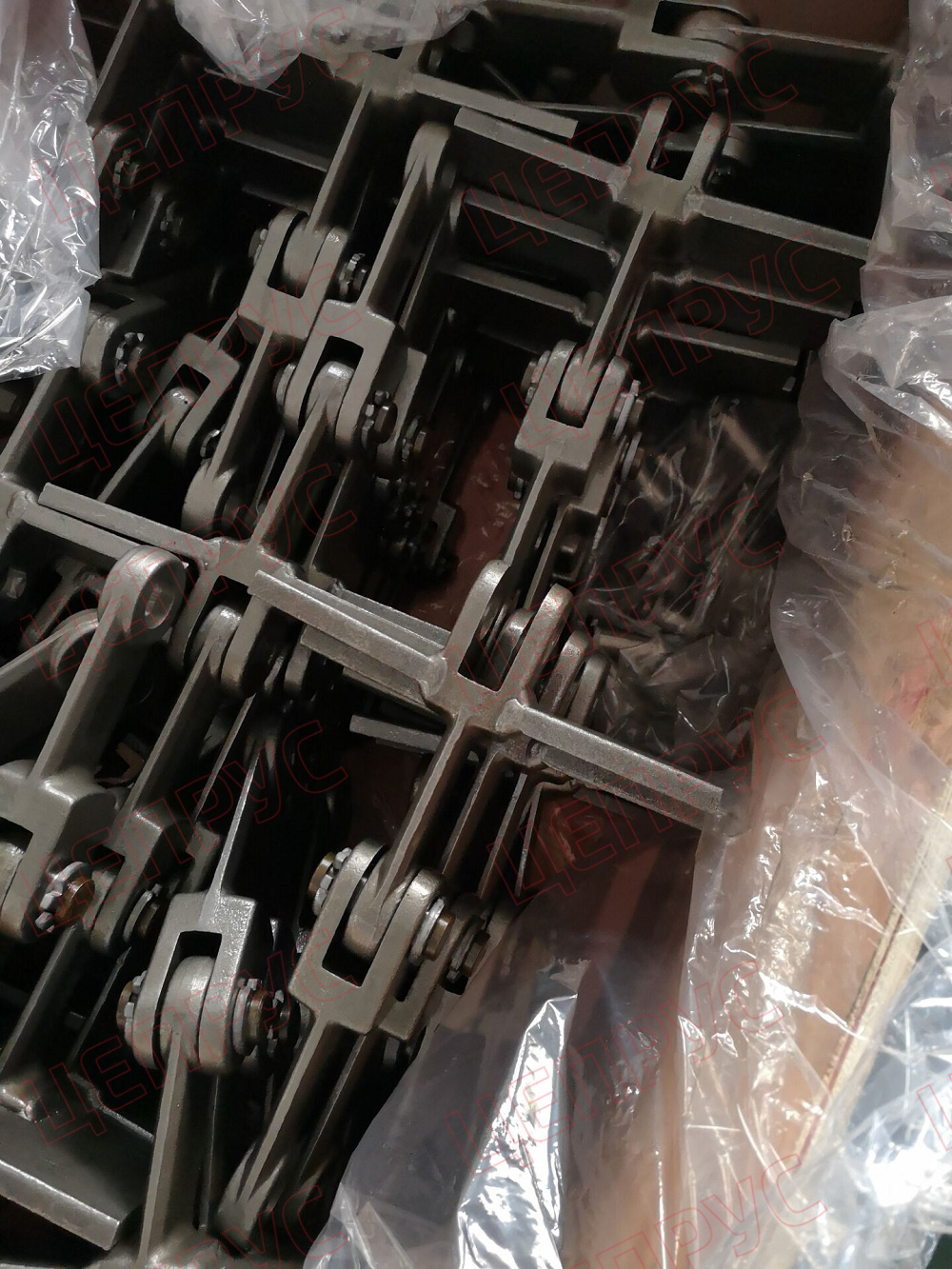

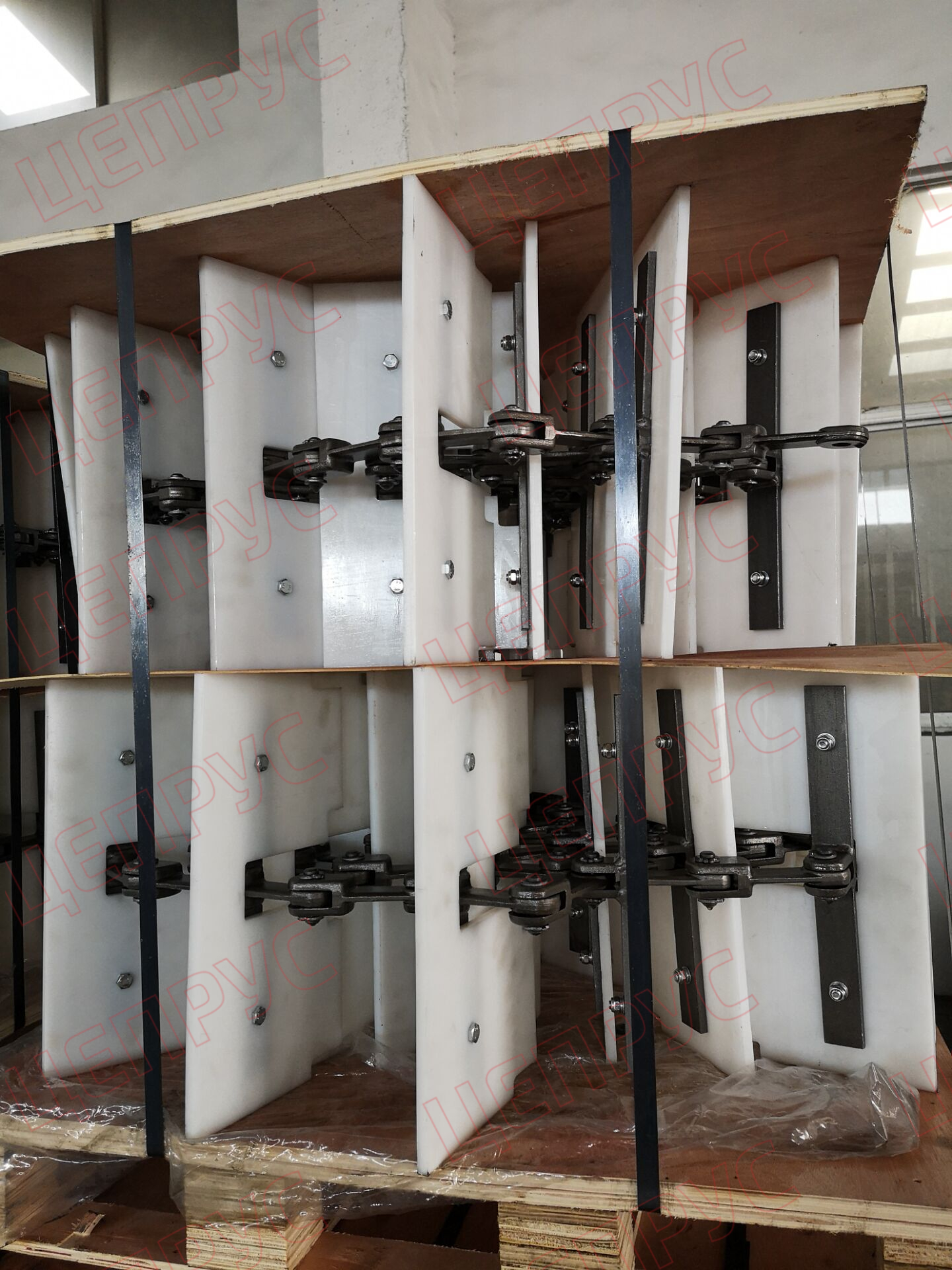

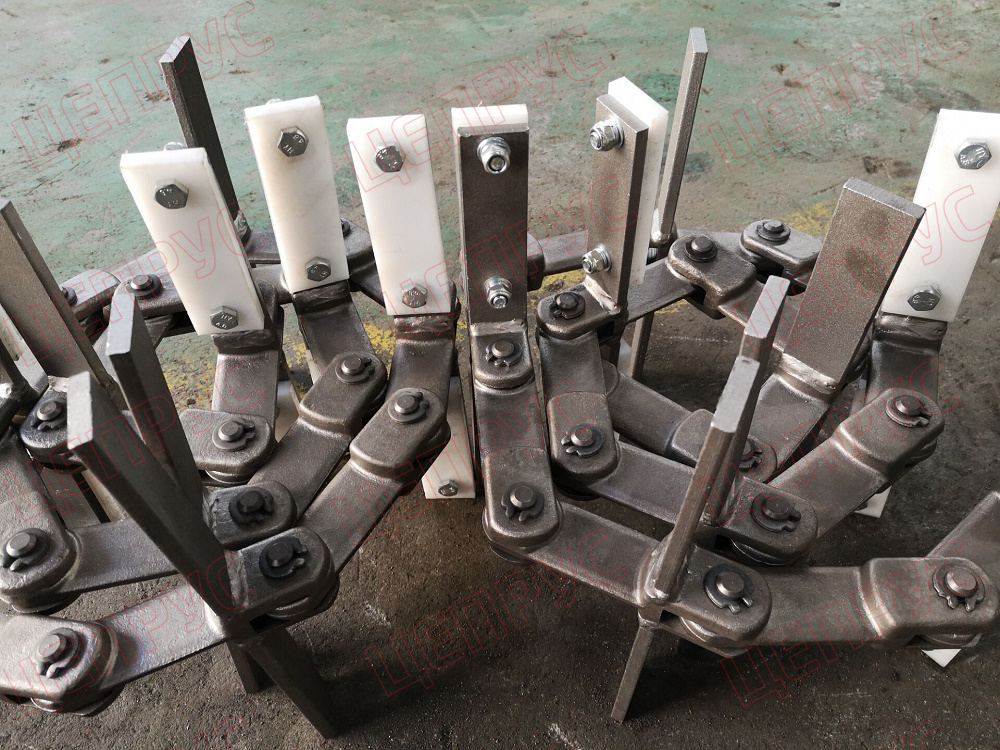

The traction device consists of a single-row forked chain with a pitch of 100 mm. The links are connected by pins, in the grooves of which lock washers are installed. On both sides of the chain links, at a pitch of 200 mm, strips with holes are welded to which polymer scrapers are attached.
Type of KPS | Box width, mm | |||
KPS(3); 2KPS(3) | 200 | 290 | 320 | 400 |
Conveyors with immersed scrapers type KPS (3) are designed for transportation of grain, oilseeds, meal, oilcake and products of their processing at enterprises for processing of grain crops.

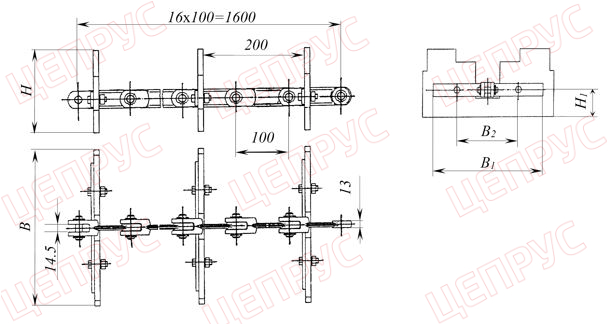

Designation | Measurements, mm | Weight per 1 pl., kg | ||||
В | В1 | В2 | Н | Н1 | ||
2KPS(3)-200 | 180 | 160 | 100 | 90 | 45 | 11.63 |
2KPS(3)-320 | 300 | 250 | 140 | 140 | 65 | 13.87 |
2KPS(3)-400 | 380 | 320 | 220 | 200 | 75 | 16.91 |
2KPS(3)-500 | 480 | 420 | 320 | 260 | 85 | 19.98 |
For our customers, we offer three chain designs for different operating conditions:
- of carbon steel - 40X;
- wear-resistant material - 18XGT;
- stainless steel - 20X13.

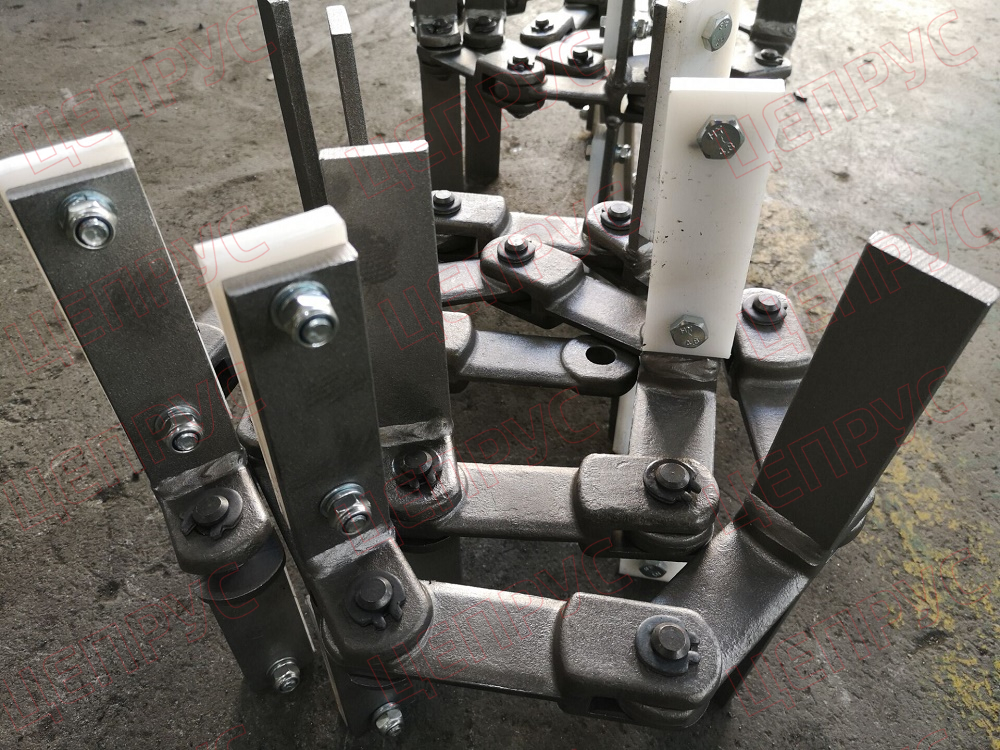

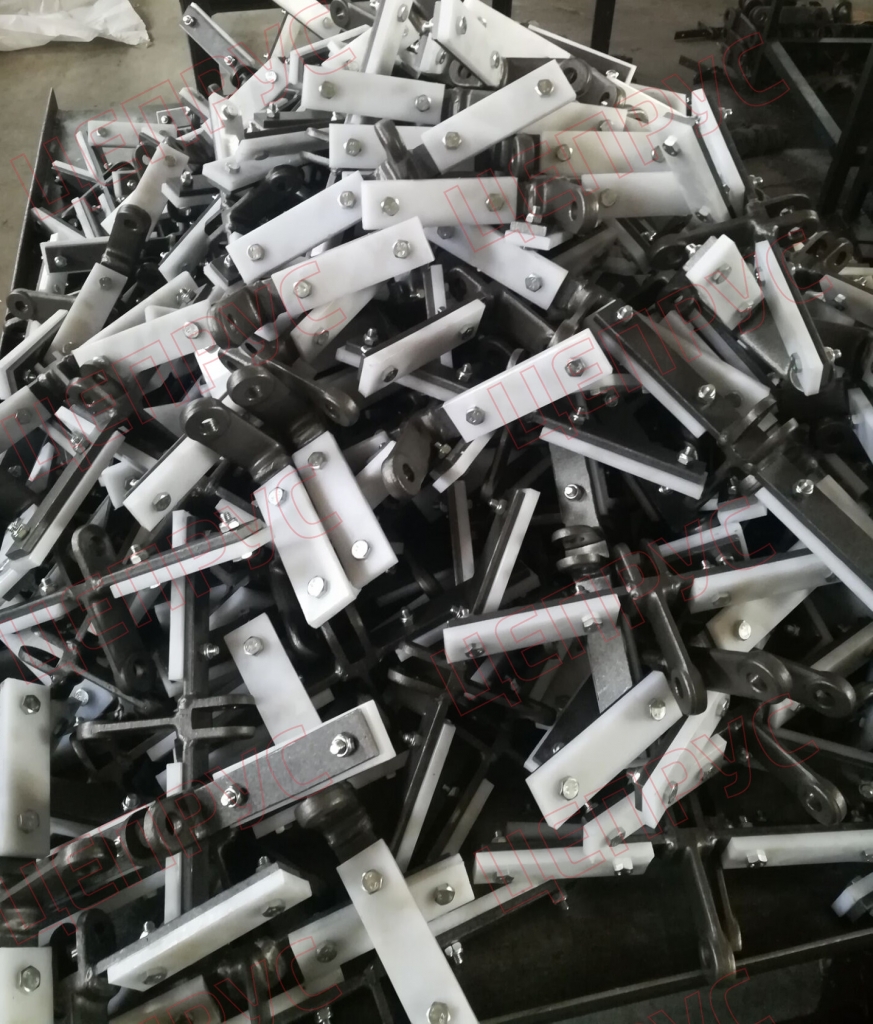

An additional advantage of the «CEPRUS» chains are scrapers with overlays of high-molecular polymer material, which significantly reduces wear and tear of the conveyor rails and chute, reduces stress on the conveyor nodes and the drag chain itself, as well as reduce injury to crops and by-products during transportation.

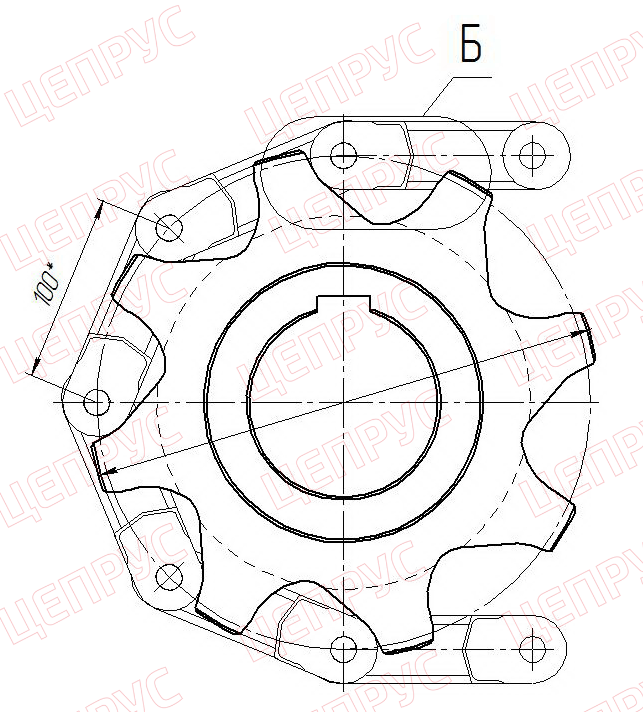

The great advantage of cooperation with «CEPRUS» Company is the possibility to order sprockets for scraper traction bodies. Specialists of our company have developed several designs of sprockets for traction bodies:

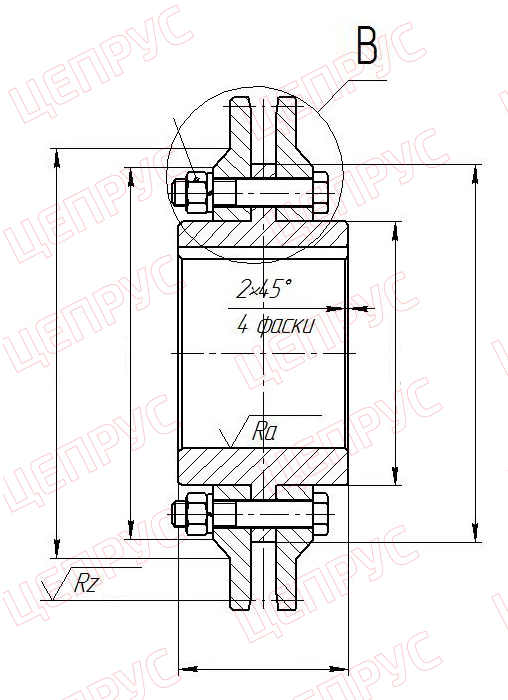

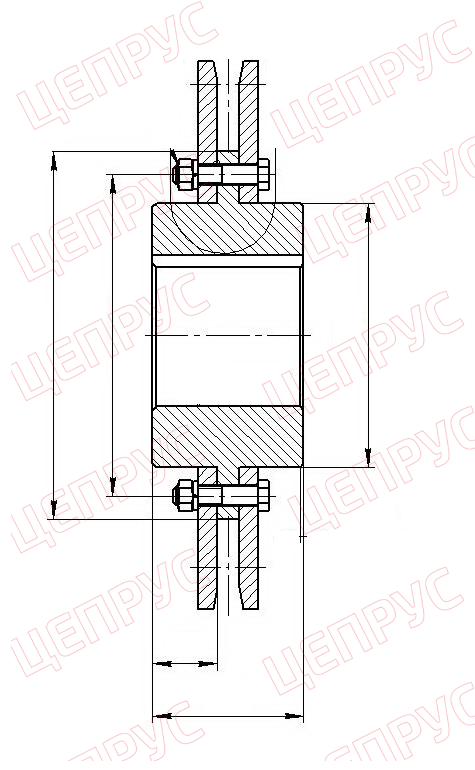

Standard sprocket design | Sprockets with collapsible rims (for rapid repair in hard-to-reach places without long downtime) | Reinforced sprockets (for heavy-duty applications) |
The main task of «CEPRUS» specialists is to solve customers' problems. Dimensions and forms of scrapers, sprockets are discussed with Customers at the stage of application consideration. We are ready to offer an individual variant of the traction body which will allow us to solve existing problems of the conveyor and to increase the service life of the traction body.
For consultations and cost calculations, you can contact the specialists of the sales department at (8332) 711-321 or send your request to sales@ceprus.pro.
